HLS及nginx-rtmp对HLS的支持

流媒体 迷途小书童 4年前 (2020-01-19) 4833次浏览 0个评论

软硬件环境

  • ubuntu 16.04
  • Android Studio 2.1.3
  • OTT BOx with android 5.1.1
  • nginx 1.11.3
  • nginx-rtmp-module
  • VLC

视频看这里

此处是youtube的播放链接，需要科学上网。喜欢我的分享，记得订阅我的频道，打开旁边的小铃铛，谢谢支持。

前言

之前的一篇博文 https://xugaoxiang.com/2020/01/19/build-video-server-using-nginx-rtmp/已经简单的介绍了如何利用nginx、nginx-rtmp-module和ffmpeg实现基于rtmp协议的直播。今天这篇继续直播这个话题,聊聊hls的应用。

HLS

HLS(Http Live Streaming)是由Apple公司定义的用于实时流传输的协议，HLS基于HTTP协议实现，传输内容包括两部分，一是M3U8描述文件，二是TS媒体文件。

m3u8文件

#EXTM3U
#EXT-X-VERSION:3
#EXT-X-MEDIA-SEQUENCE:6119
#EXT-X-TARGETDURATION:14
#EXTINF:10.625,
6119.ts
#EXTINF:13.667,
6120.ts
#EXTINF:10.000,
6121.ts

如上,m3u8文件是一个描述文件,必须以#EXTM3U开头,之后是切片TS文件的序列.对于直播来讲,m3u8文件需要进行实时的更新,只保留若干个TS切片序列,防止本地存储撑爆硬盘.

多码率支持

针对应用网络多变及不稳定的情况，多数直播都会提供多码率支持，播放器会根据用户当前的网络状况，自动切换到对应的码率上，大大提升用户体验。在服务器端，为了提供多码率的支持，就需要多级m3u8文件。在主m3u8文件不再有TS序列，而是二级m3u8文件,如下所示

#EXTM3U
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=1280000
low.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=2560000
mid.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=7680000
hi.m3u8

nginx-rtmp对HLS的支持

nginx-rtmp-module本身对rtmp和hls都有很好的支持,只需要在nginx.conf配置下就ok了


#user  nobody;
worker_processes  auto;

rtmp_auto_push on;

error_log  logs/error.log;
error_log  logs/error.log  notice;
error_log  logs/error.log  info;

#pid        logs/nginx.pid;

events {
    worker_connections  1024;
}

rtmp {

    server {

        listen 1935;

        chunk_size 4000;

        # TV mode: one publisher, many subscribers
        #application mytv {

            # enable live streaming
            #live on;

            # record first 1K of stream
            #record all;
            #record_path /tmp/av;
            #record_max_size 1K;

            # append current timestamp to each flv
            #record_unique on;

            # publish only from localhost
            #allow publish 127.0.0.1;
            #deny publish all;

            #allow play all;
        #}

        # Transcoding (ffmpeg needed)
        #application big {
        #    live on;

            # On every pusblished stream run this command (ffmpeg)
            # with substitutions: $app/${app}, $name/${name} for application & stream name.
            #
            # This ffmpeg call receives stream from this application &
            # reduces the resolution down to 32x32. The stream is the published to
            # 'small' application (see below) under the same name.
            #
            # ffmpeg can do anything with the stream like video/audio
            # transcoding, resizing, altering container/codec params etc
            #
            # Multiple exec lines can be specified.

        #    exec ffmpeg -re -i rtmp://localhost:1935/$app/$name -vcodec flv -acodec copy -s 32x32
                        #-f flv rtmp://localhost:1935/small/${name};
        #}

        #application small {
        #    live on;
        #    # Video with reduced resolution comes here from ffmpeg
        #}

        #application webcam {
        #    live on;

            # Stream from local webcam
        #    exec_static ffmpeg -f video4linux2 -i /dev/video0 -c:v libx264 -an
                               #-f flv rtmp://localhost:1935/webcam/mystream;
        #}

#        application mypush {
#            live on;

            # Every stream published here
            # is automatically pushed to
            # these two machines
            #push rtmp1.example.com;
            #push rtmp2.example.com:1934;
#        }

#        application mypull {
#            live on;

            # Pull all streams from remote machine
            # and play locally
            #pull rtmp://rtmp3.example.com pageUrl=www.example.com/index.html;
#        }

#        application mystaticpull {
#            live on;

            # Static pull is started at nginx start
            #pull rtmp://rtmp4.example.com pageUrl=www.example.com/index.html name=mystream static;
#        }

        # video on demand
#        application vod {
#            play /opt/www/vod;
#        }

#        application vod2 {
#            play /var/mp4s;
#        }

        # Many publishers, many subscribers
        # no checks, no recording
        #application videochat {

         #   live on;

            # The following notifications receive all
            # the session variables as well as
            # particular call arguments in HTTP POST
            # request

            # Make HTTP request & use HTTP retcode
            # to decide whether to allow publishing
            # from this connection or not
         #   on_publish http://localhost:8080/publish;

            # Same with playing
         #   on_play http://localhost:8080/play;

            # Publish/play end (repeats on disconnect)
         #   on_done http://localhost:8080/done;

            # All above mentioned notifications receive
            # standard connect() arguments as well as
            # play/publish ones. If any arguments are sent
            # with GET-style syntax to play & publish
            # these are also included.
            # Example URL:
            #   rtmp://localhost/myapp/mystream?a=b&c=d

            # record 10 video keyframes (no audio) every 2 minutes
          #  record keyframes;
          #  record_path /tmp/vc;
          #  record_max_frames 10;
          #  record_interval 2m;

            # Async notify about an flv recorded
          #  on_record_done http://localhost:8080/record_done;

        #}

        # HLS

        # For HLS to work please create a directory in tmpfs (/tmp/hls here)
        # for the fragments. The directory contents is served via HTTP (see
        # http{} section in config)
        #
        # Incoming stream must be in H264/AAC. For iPhones use baseline H264
        # profile (see ffmpeg example).
        # This example creates RTMP stream from movie ready for HLS:
        #
        # ffmpeg -loglevel verbose -re -i movie.avi  -vcodec libx264
        #    -vprofile baseline -acodec libmp3lame -ar 44100 -ac 1
        #    -f flv rtmp://localhost:1935/hls/movie
        #
        # If you need to transcode live stream use 'exec' feature.
        #
        application hls {
            live on;
            hls on;
            hls_path /opt/www/live;
        }

        # MPEG-DASH is similar to HLS

        #application dash {
        #    live on;
        #    dash on;
        #    dash_path /tmp/dash;
        #}
    }
}

# HTTP can be used for accessing RTMP stats
http {

    server {

        listen      8081;

        location / {
            root /opt/www/;
        }

        # This URL provides RTMP statistics in XML
        location /stat {
            rtmp_stat all;

            # Use this stylesheet to view XML as web page
            # in browser
            rtmp_stat_stylesheet stat.xsl;
        }

        location /stat.xsl {
            # XML stylesheet to view RTMP stats.
            # Copy stat.xsl wherever you want
            # and put the full directory path here
            root /home/djstava/Workshop/Web/nginx-rtmp-module/;
        }

        location /hls {
            # Serve HLS fragments
            types {
                application/vnd.apple.mpegurl m3u8;
                video/mp2t ts;
            }

            root /opt/www/;
            add_header Cache-Control no-cache;
        }

        #location /dash {
            # Serve DASH fragments
        #    root /tmp;
        #    add_header Cache-Control no-cache;
        #}
    }
}

在rtmp标签下,指定hls application的根路径/opt/www/live,所有的TS切片文件都存放在这里

ffmpeg推流

推送本地文件

ffmpeg -re -i /opt/www/vod/dhxy1.mp4 -vcodec copy -acodec copy -f flv -y rtmp://192.168.1.88/hls/livestream1

推送成功后,你可以通过如下2个url播放对应的模拟实时流,请确保nginx服务已启动。

rtmp://192.168.1.88/hls/livestream1
http://192.168.1.88:8081/live/livestream1.m3u8

另外 http://192.168.1.88:8081/stat 页面可以显示当前服务的一些信息，如接入的客户端数量、音频、视频的信息等等，见下图

nginx_stat

推送UDP组播数据

ffmpeg -i udp://@224.0.0.2:9000 -vcodec libx264 -acodec aac -strict -2 -f flv -s 1280x720 -q 10 -ac 1 -ar 44100 rtmp://192.168.1.88/hls/livestream

nginx_udp

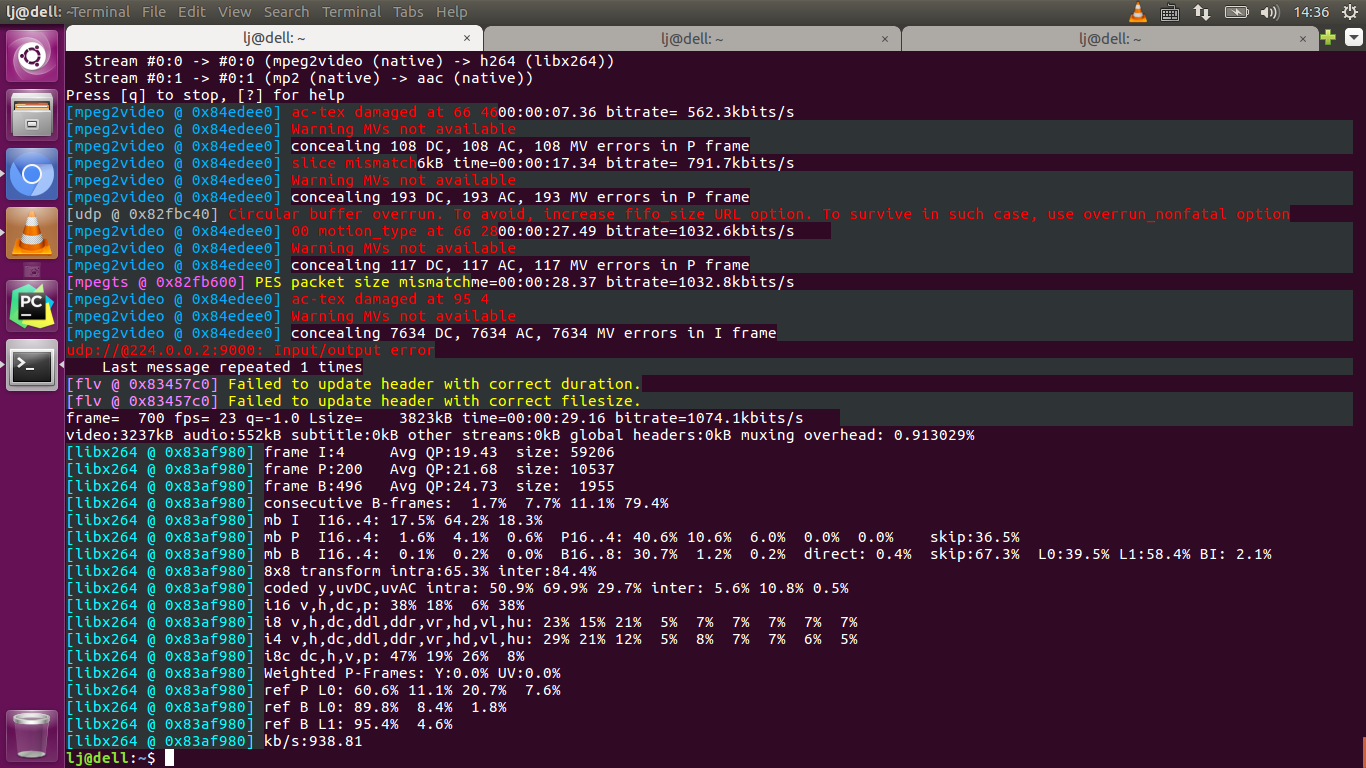

在以UDP数据为输入源时，ffmpeg会报如下图中的错误信息

nginx_udp_error

这时只需要重新修改下ffmpeg的推流命令就可以，如下

ffmpeg -i 'udp://@224.0.0.2:9000?fifo_size=2000000&overrun_nonfatal=1' -vcodec libx264 -acodec aac -strict -2 -f flv -s 1280x720 -q 10 -ac 1 -ar 44100 rtmp://192.168.1.88/hls/livestream

fifo_size的单位是字节,自己酌情增减。

服务端多码率支持

nginx.conf


#user  nobody;
worker_processes  auto;

rtmp_auto_push on;

error_log  logs/error.log;
error_log  logs/error.log  notice;
error_log  logs/error.log  info;

#pid        logs/nginx.pid;

events {
    worker_connections  1024;
}

rtmp {

    server {

        listen 1935;

        chunk_size 4000;

        # TV mode: one publisher, many subscribers
        #application mytv {

            # enable live streaming
            #live on;

            # record first 1K of stream
            #record all;
            #record_path /tmp/av;
            #record_max_size 1K;

            # append current timestamp to each flv
            #record_unique on;

            # publish only from localhost
            #allow publish 127.0.0.1;
            #deny publish all;

            #allow play all;
        #}

        # Transcoding (ffmpeg needed)
        #application big {
        #    live on;

            # On every pusblished stream run this command (ffmpeg)
            # with substitutions: $app/${app}, $name/${name} for application & stream name.
            #
            # This ffmpeg call receives stream from this application &
            # reduces the resolution down to 32x32. The stream is the published to
            # 'small' application (see below) under the same name.
            #
            # ffmpeg can do anything with the stream like video/audio
            # transcoding, resizing, altering container/codec params etc
            #
            # Multiple exec lines can be specified.

        #    exec ffmpeg -re -i rtmp://localhost:1935/$app/$name -vcodec flv -acodec copy -s 32x32
                        #-f flv rtmp://localhost:1935/small/${name};
        #}

        #application small {
        #    live on;
        #    # Video with reduced resolution comes here from ffmpeg
        #}

        #application webcam {
        #    live on;

            # Stream from local webcam
        #    exec_static ffmpeg -f video4linux2 -i /dev/video0 -c:v libx264 -an
                               #-f flv rtmp://localhost:1935/webcam/mystream;
        #}

#        application mypush {
#            live on;

            # Every stream published here
            # is automatically pushed to
            # these two machines
            #push rtmp1.example.com;
            #push rtmp2.example.com:1934;
#        }

#        application mypull {
#            live on;

            # Pull all streams from remote machine
            # and play locally
            #pull rtmp://rtmp3.example.com pageUrl=www.example.com/index.html;
#        }

#        application mystaticpull {
#            live on;

            # Static pull is started at nginx start
            #pull rtmp://rtmp4.example.com pageUrl=www.example.com/index.html name=mystream static;
#        }

        # video on demand
#        application vod {
#            play /opt/www/vod;
#        }

#        application vod2 {
#            play /var/mp4s;
#        }

        # Many publishers, many subscribers
        # no checks, no recording
        #application videochat {

         #   live on;
         #   on_publish http://localhost:8080/publish;

            # Same with playing
         #   on_play http://localhost:8080/play;

            # Publish/play end (repeats on disconnect)
         #   on_done http://localhost:8080/done;

            # All above mentioned notifications receive
            # standard connect() arguments as well as
            # play/publish ones. If any arguments are sent
            # with GET-style syntax to play & publish
            # these are also included.
            # Example URL:
            #   rtmp://localhost/myapp/mystream?a=b&c=d

            # record 10 video keyframes (no audio) every 2 minutes
          #  record keyframes;
          #  record_path /tmp/vc;
          #  record_max_frames 10;
          #  record_interval 2m;

            # Async notify about an flv recorded
          #  on_record_done http://localhost:8080/record_done;

        #}

        # HLS
        application hls {
            live on;
            hls on;
            hls_path /opt/www/live;
            hls_nested on;

            hls_variant _low BANDWIDTH=800000;
            hls_variant _mid BANDWIDTH=1200000;
            hls_variant _hi  BANDWIDTH=2000000;
        }

        # MPEG-DASH is similar to HLS

        #application dash {
        #    live on;
        #    dash on;
        #    dash_path /tmp/dash;
        #}
    }
}

# HTTP can be used for accessing RTMP stats
http {

    server {

        listen      8081;

        location / {
            root /opt/www/;
        }

        # This URL provides RTMP statistics in XML
        location /stat {
            rtmp_stat all;

            # Use this stylesheet to view XML as web page
            # in browser
            rtmp_stat_stylesheet stat.xsl;
        }

        location /stat.xsl {
            # XML stylesheet to view RTMP stats.
            # Copy stat.xsl wherever you want
            # and put the full directory path here
            root /home/djstava/Workshop/Web/nginx-rtmp-module/;
        }

        location /hls {
            # Serve HLS fragments
            types {
                application/vnd.apple.mpegurl m3u8;
                video/mp2t ts;
            }

            root /opt/www/;
            add_header Cache-Control no-cache;
        }

        #location /dash {
            # Serve DASH fragments
        #    root /tmp;
        #    add_header Cache-Control no-cache;
        #}
    }
}

主要看看application hls的内容

application hls {
    live on;
    hls on;
    hls_path /opt/www/live;
    hls_nested on;

    hls_variant _low BANDWIDTH=800000;
    hls_variant _mid BANDWIDTH=1200000;
    hls_variant _hi  BANDWIDTH=2000000;
}

这里设定当带宽分别为800k、1200k、2000k的时候，终端都播放相对应的m3u8索引文件

ffmpeg推流

这里需要利用ffmpeg推送3路不同的流，对应上面提到的低、中、高

ffmpeg -re -i ~/Videos/xjcy.mp4 -vcodec copy -acodec copy -b:v 800k -b:a 32k -f flv rtmp://10.10.10.59/hls/livestream_low
ffmpeg -re -i ~/Videos/xjcy.mp4 -vcodec copy -acodec copy -b:v 1200k -b:a 64k -f flv rtmp://10.10.10.59/hls/livestream_mid
ffmpeg -re -i ~/Videos/xjcy.mp4 -vcodec copy -acodec copy -b:v 2000k -b:a 128k -f flv rtmp://10.10.10.59/hls/livestream_hi

推送开始后，hls的root目录下就会生成相应的文件内容，如下图所示

nginx_ffmpeg_variant

此时livestream.m3u8文件内容为

#EXTM3U
#EXT-X-VERSION:3
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=800000
livestream_low/index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=1200000
livestream_mid/index.m3u8
#EXT-X-STREAM-INF:PROGRAM-ID=1,BANDWIDTH=2000000
livestream_hi/index.m3u8

相应的，播放链接为 http://10.10.10.59:8081/live/livestream.m3u8，播放器需要做的就是根据自身的网络状况，切换到其它的索引文件。

直播节目的录制

直播进行的同时一般都会有本地录制的需求，nginx-rtmp-module提供了这个功能，接下来实践一下。还是看nginx.conf配置文件

application hls {
    live on;
    hls on;
    hls_path /opt/www/live;
    hls_nested on;

    hls_variant _low BANDWIDTH=800000;
    hls_variant _mid BANDWIDTH=1200000;
    hls_variant _hi  BANDWIDTH=2000000;

    recorder all {
        record all;
        record_suffix -%Y-%m-%d-%H_%M_%S.flv;
        record_max_size 200000K;
        record_path /opt/www/record;
    }
}

record all录制所有内容，也可以只录音频或者视频。

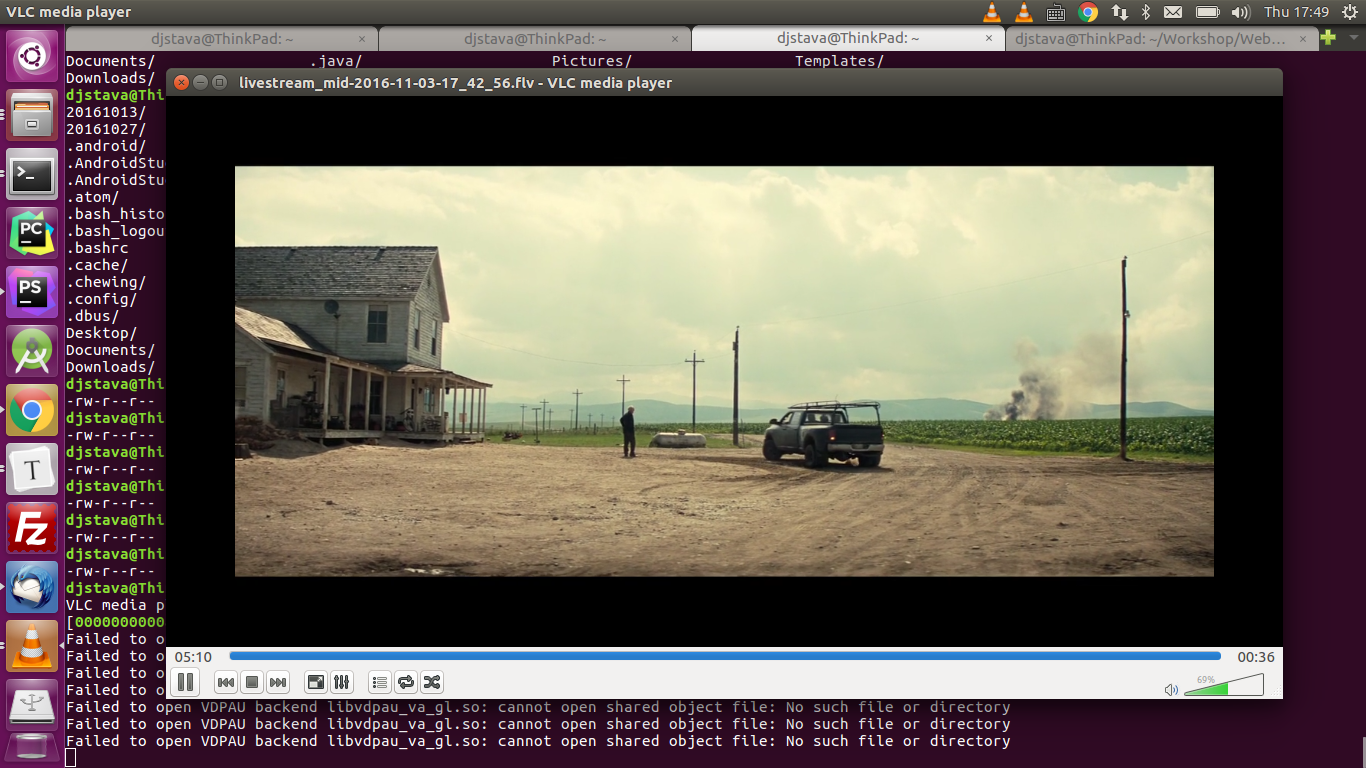

推流后/opt/www/record路径下就会自动生成带对应时间戳的flv文件，用vlc测试播放OK

nginx_ffmpeg_record

时移电视

要想实现时移电视(这里指的是服务器端)的话，首先需要在服务器上保留足够的切片文件，比如说你提供1小时的时移，就意味着要有1小时的切片文件，而且索引文件中包含前1小时的切片序列

application hls {
    live on;
    hls on;
    hls_path /opt/www/live;
    hls_continuous on;
    hls_sync 100ms;
    hls_nested on;
    hls_playlist_length 5m;
    hls_fragment 10s;

    hls_variant _low BANDWIDTH=800000;
    hls_variant _mid BANDWIDTH=1200000;
    hls_variant _hi  BANDWIDTH=2000000;

    #exec /home/djstava/Workshop/Web/nginx-1.11.3/build/test.sh;
    #exec_kill_signal term;

    #recorder all {
    #    record all;
    #    record_suffix -%Y-%m-%d-%H_%M_%S.flv;
    #    record_max_size 6200000K;
    #    record_path /opt/www/record;
    #}
}

hls_fragment指的是切片文件的长度，这里是10秒，hls_playlist_length指的是索引文件的长度，我这里设的是5分钟。推流开始后，你到切片生成的目录，会发现*.m3u8文件包含了30个ts序列。所以，在上面这种情况下，就只能进行5分钟的时移，当播放进度到达当前直播点时则继续回到直播状态

执行外部shell脚本

比如有个脚本test.sh，内容如下

#!/bin/bash

on_die ()
{
    # kill all children
    pkill -KILL -P $$
}

trap 'on_die' TERM
ffmpeg -re -i /home/djstava/Videos/ygdx.mp4  -vcodec copy -acodec copy -f flv rtmp://10.10.10.48/hls/ygdx &
wait

我这里把它放在hls application中执行,则nginx.conf应如下

application hls {
    live on;
    hls on;
    hls_path /opt/www/live;
    hls_continuous on;
    hls_sync 100ms;
    hls_nested on;
    hls_playlist_length 5m;
    hls_fragment 10s;

    hls_variant _low BANDWIDTH=800000;
    hls_variant _mid BANDWIDTH=1200000;
    hls_variant _hi  BANDWIDTH=2000000;

    exec /home/djstava/Workshop/Web/nginx-1.11.3/build/test.sh;
    exec_kill_signal term;

    #recorder all {
    #    record all;
    #    record_suffix -%Y-%m-%d-%H_%M_%S.flv;
    #    record_max_size 6200000K;
    #    record_path /opt/www/record;
    #}
}

当hls服务正常启动时(如上面写过的ffmpeg推流动作),外部脚本test.sh也被执行了。脚本中捕捉了退出的中断信号，也就说，如果ffmpeg推流动作中断了，那么test.sh脚本也就不再执行了

制作RAMDISK

为了提高HLS的读写效率,可以把切片和索引文件操作放在内存中进行.

mount -t tmpfs -o size=512m tmpfs /opt/www/live

参考文献

喜欢 (0)

您必须 登录 才能发表评论！

Ads Blocker Image Powered by Code Help Pro

Ads Blocker Detected!!!

请关闭 Adblock 等类似浏览器插件，然后刷新页面访问，感谢您的支持!

We have detected that you are using extensions to block ads. Please support us by disabling these ads blocker.
